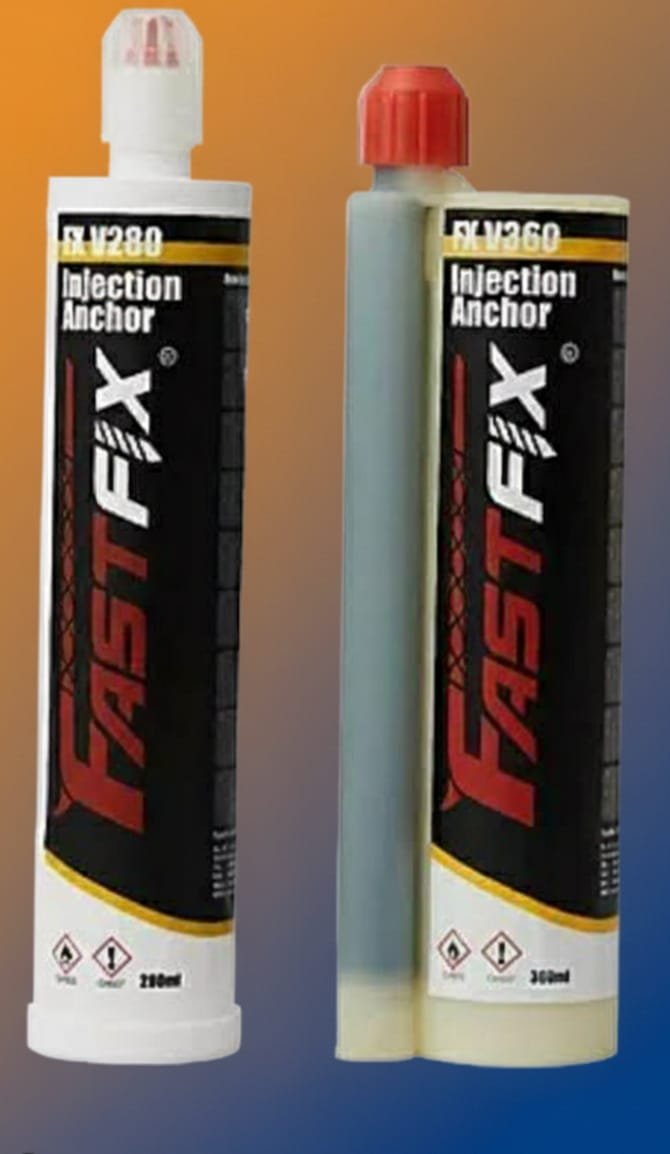

FastFX Injection Anchor V280 & V360

Chemical Anchor Adhesive | Buy in Karachi

FastFX Injection Anchor is a high-strength vinyl ester resin adhesive designed for high-performance post-installed anchoring. It is engineered for use in solid and hollow concrete, brick, and block work. Available in 280 mL (V280) and 360 mL (V360) cartridges, it is supplied by Araish Constructors, Karachi’s premier structural solution provider.

---

Key Features

• Advanced Vinyl Ester Formula: Offers superior chemical and moisture resistance compared to standard polyester anchors.

• Versatile Substrate Compatibility: Suitable for solid concrete as well as hollow base materials (when used with perforated sleeves).

• Zero Expansion Pressure: Safe for use in thin concrete sections and at close edge distances without risking substrate splitting.

• Wide Temperature Range: Reliable performance in application environments ranging from 0°C to 40°C.

• Rapid Curing: Short gel and cure times significantly improve on-site program efficiency and turnaround.

• Multi-Insert Use: Ideal for securing steel rebar, threaded rods, and structural bolts.

---

Typical Applications

• Masonry & Concrete: Anchor bolt installation in solid concrete, hollow block, and brick.

• Structural Extensions: Rebar dowelling for concrete slab extensions and wall connections.

• Facades: Secure bracket fixings for curtain walls and external cladding.

• Safety & Access: High-strength post fixings for handrails, balustrades, and staircases.

• Industrial Environments: Base fixings for equipment in wet or chemically aggressive areas.

---

Full Product Description

FastFX Injection Anchor utilizes a high-performance hybrid vinyl ester resin system. This formulation is specifically chosen for projects where moisture-prone or chemically aggressive environments might compromise standard polyester adhesives. The two-component cartridge system dispenses a perfectly homogenized mix through a static nozzle, ensuring consistent adhesive quality for every hole drilled.

The V280 cartridge is the ideal choice for standard anchor bolt installations and rebar dowelling in residential and light commercial projects. For larger structural programs where material economy and high-volume speed are critical, the V360 large-format cartridge is the preferred professional standard. Both versions are compatible with standard high-quality dispenser guns.

Specialist Support: Available from Araish Constructors. We also provide perforated sleeves for hollow base material installations and technical guidance on hole cleaning and preparation.

---

Technical Specifications

Feature	Specification
Cartridge Sizes	280 mL (V280) / 360 mL (V360)
Mix Ratio	10:1
Gel Time	4–8 minutes (at 23°C)
Full Cure Time	30–60 minutes (at 23°C)
Base Material	Solid & Hollow Concrete / Brick / Block
Colour	Grey / Beige (mixed)
Shelf Life	15 months

---

Frequently Asked Questions (FAQ)

What is the difference between FastFX V280 and V360?

The FastFX V280 is a 280 mL cartridge designed for standard anchor bolt and rebar applications. The V360 is a larger 360 mL cartridge intended for high-volume structural anchoring. The V360 provides more material per unit, which reduces waste and material handling on large-scale construction sites.

Can FastFX injection anchor be used in hollow blocks?

Yes. FastFX injection anchor is highly effective in hollow or perforated base materials when used in conjunction with a perforated sleeve. The sleeve contains the resin, allowing it to form a secure “key” within the block rather than flowing uselessly into the internal voids.

---
